JRT 2020 new product: 300Hz mini lidar tof laser range sensor

2020-05-18
300Hz ToF Sensor is a new generation of single point ranging LiDAR module developed by JRT. It has the characteristics of fast measuring speed, high measuring precision and simple installation and operation. The tof sensor module is suitable for robot obstacle avoidance, dynamic target positioning monitoring and industrial control measurement such as UAV / AGV trolley.
300Hz tof sensor
Performance Parameter:
Model: ET01M
Range: 0.1-1m at 70% reflectance
Frequency: 300Hz(can be customized)
Accuracy: +/- 5cm at 70% reflectance
Absolute Accuracy: +/-5cmat 0.1~2.5m; +/-2% at 2.5-15m
Blind Area: 10cm
Resolution: 1cm
Light: 650nm red laser, Class II,<1mw at 100Hz (Customizable 780nm version)
Resistance to Light: 10000 LUX
Voltage: DC +3.3V
Current: 50mA @ 100Hz
Power: 166mw@100Hz
Volume: 50*26*13mm
Weight: 10g
Serial level: TTL 3.3V

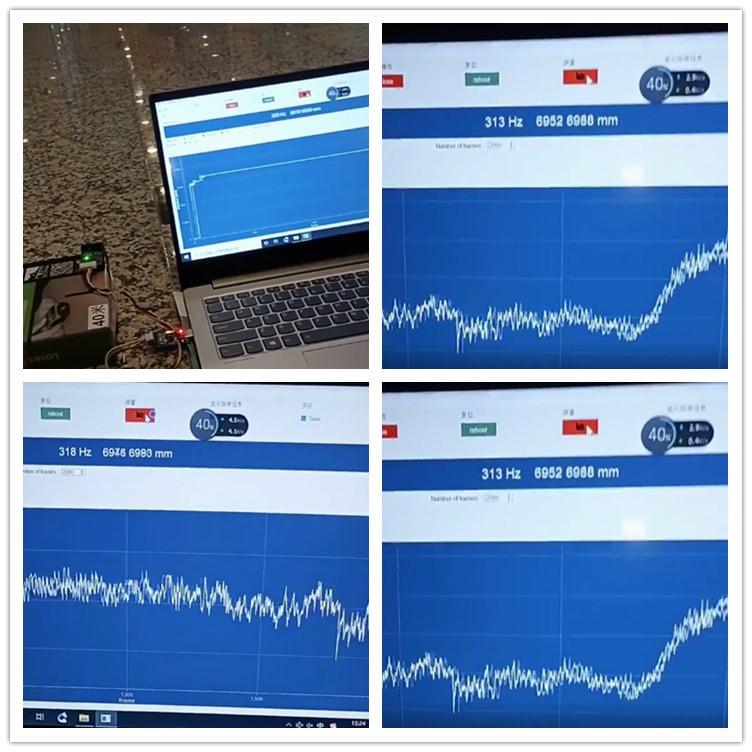

The test data from one of our cusomers ordered:

300hz range sensor test data
