JRT high precision laser distance sensor module for high quality industrial applications

2020-01-16
Basic Info
Model NO.: M88B
Measuring Range:0.03-60m
Data output:Digital
Accuracy: +/-1mm
Size:49*25*13mm
Weight:about 9g
Application:Industrial, engineering ranging, drones, logistics robots, container positioning, etc.
Transport Package:Neutral packing
Specification:ISO9001, ROHs,FDA,CE.
Origin:China
Product Description
JRT high precision Laser Distance Module for high quality industrial applications

Introduction:
Chengdu JRT Technology Co., Ltd. is a long-time professional manufacturer of laser range finder modules. It is ahead of competitors in the industry in terms of laser technology, optical systems, electronic components, and mechanical dimensions. It has 100 countries and regions worldwide Of our customers have used our laser ranging modules already. The M88B series laser distance module can measure the distance faster and more accurately. The Laser Measurement Sensors can work stably even in the harsh measurement environment, such as the poor reflected laser signal environment. The M88B is extremely small and lightweight, and is suitable for welcome applications with limited size and weight, such as portable devices and drones.
Features:
1. 1mm accuracy;
2. remote measurement: 0.03-60m;
3. support continuous measurement;
4. module supports data communication: serial port / RXTX / USB / RS232 / RS485/Bluetooth;
5. supports customized schemes;

Specification

Brand Name JRT
Product Name Laser Distance Meter Sensor Module
Model Number M88B
Certificate FDA/ISO9001
Place of Origin Chengdu,Sichuan
Accuracy ±1 mm (0.04 inch)
Measuring Unit mm
Measuring Range (without Reflection) 0.03-60m
Measuring Time 0.125~4 seconds
Laser Class Class II
Laser Type 620-690nm,<1mW
Size 49*25*13mm (±1 mm)
Weight About 9g
Voltage DC2.0~3.3V
Electrical Level TTL/CMOS
Frequency 3Hz
Operating Temperature 0-40
Storage Temperature -25~60
Packaging Neutral packing


Order notice:

1. Please note that the condition of the reflective surface will affect the accuracy;

2. If you have special requirements for functions or specifications, please contact us for free.

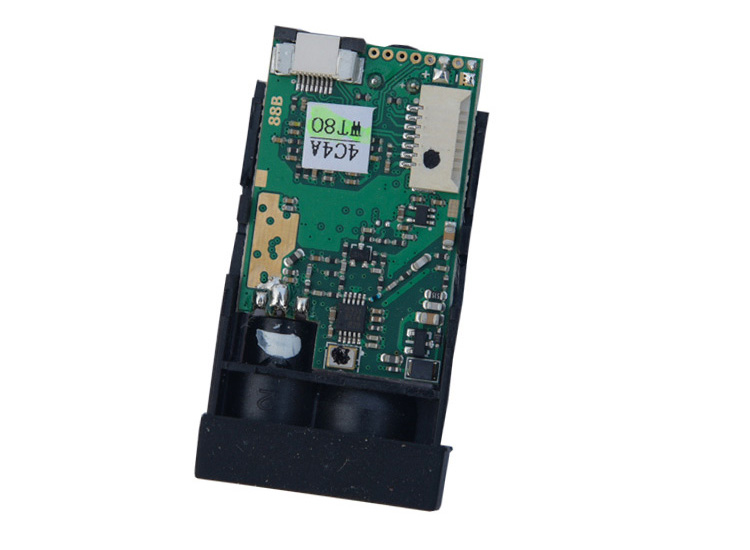

Product Picture:

60m high precision laser distance module

Certificates We Have

Jrt Laser Distance Sensor Certification Certificates We Have 750

Company Workshop

JRT insist on developing and producing laser distance modules with better quality, smaller size, but more favorable prices.
We can do OEM designs and customize product functions as customer required.
Three production line: Industrial laser Distance Sensor; Laser Distance Meter Module; laser range finder.

Laser Distance Sensor Production Line
