Which laser ranging sensor is good for outdoor using?

2020-08-12
Thanks for choosing us, JRT already have many customers, and using our Smart Measure Sensor successfully integrated in their laser measurement projects.
This following is one of our customers feedbacks, sincerely hope can help you and your company. If you want to using in outdoor, suggest you to select our B87A long Laser Range Sensor with RS485.
1. Longest range radar:
The Distance Measuring Sensor can measure from 3cm to a long range 100M (150M is the maximum range).
2. Millimeter level high precision:

Using phase method of 8 hz high frequency, this kind of Laser Ranging Sensor is more suitable for static object measurement.

B87A long laser range sensor

3. Digital signal output:
Easy to use, and it's perfect realization of all functions of ranging sensor. Suitable for smart home, Internet of things.
4. RS485 interface:

It is good for long distance data transmitting up to hundred meters, if using RS485 laser measurement sensor.

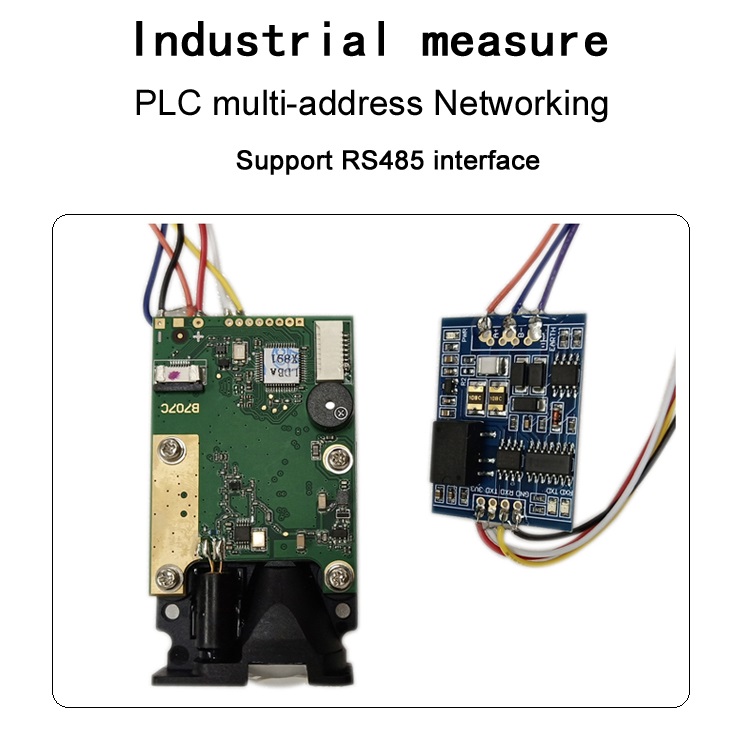

PLC multi-address 707C laser ranging sensor

5. Waterproof & Dustproof:
If you application field is very harsh, also, customers will consider to make a IP65 enclosure or higher class to protect.

Parameters
Model: B605B (B87A is the latest version, smaller size and Hex code etc.)
Measurement range: 0.03-100M (150M is the maximum range)
Resolution: 1 mm
Measurement accuracy: (standard deviation): ±3 mm (within 10 meters) is greater than 10 meters, the calculation formula is ±3+0.05*(D-10), D is the distance
Unit: mm
Laser type: 620-690nm
Laser class: Class II, <1mW (Class II safety)
Single Measuring time: 0.125-0.3 seconds at distance m
Spot diameter: 6mm@10m
Working temperature: -0~+40℃
Storage temperature: -20~+60℃
Weight: about 13g
Size (length×width×thickness): 6.4cmX4.0cmX1.8cm
Supply voltage: DC3v-3.3v

Communication interface: the module uses TTL serial port for data communication( baud rate 19200bps)

Industrial high resolution distance sensor
